Specification | Details |
Brand & Model | EVE Power, LF105 |
Battery Chemistry | Lithium Iron Phosphate (LiFePO4) |
| Nominal Voltage | 3.20V (0.5C discharge, 25℃±2℃, 2.5V~3.65V) |
Nominal Capacity | 105Ah (@0.5C/0.5C, 25℃±2℃, 2.5V~3.65V) |
Initial Internal Resistance (IR) | 0.32±0.05mΩ (AC 1kHz, 30%~40% SOC, fresh battery) |
| Weight | 1980g±60g (Including external insulator, bottom protective film, top insulator) |
Product Overview

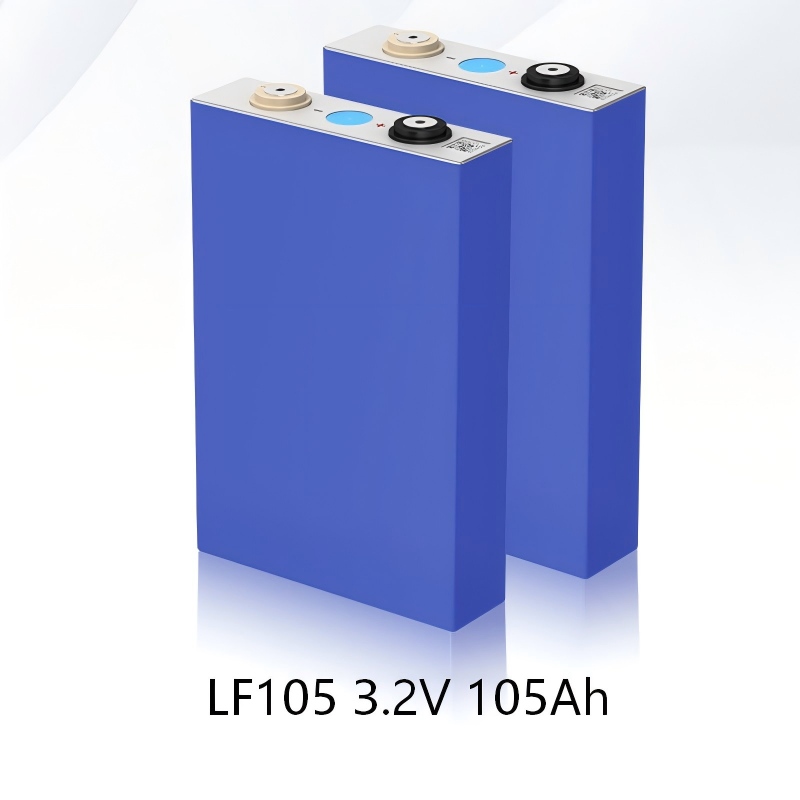

The EVE LF105 is a premium prismatic LiFePO4 cell by EVE Power, with 3.2V nominal voltage, 105Ah nominal capacity (min 105.0Ah @0.5C, 25℃±2℃) and ≥336.0Wh energy. Its prismatic aluminum shell ensures good heat dissipation and impact resistance, with strict QC for consistent performance. Suitable for single use or module assembly, it excels in harsh environments. We offer customizable processing services (nickel plating, welding stud, inner hole drilling) to further meet your installation needs.
Key Features & Benefits
Genuine EVE Quality: 100% original LF105 cells, EVE's strict QC (initial IR: 0.32±0.05mΩ), compliant with EVE spec RD-LF105-S01-LF, Version C.
High Capacity & Energy: 105Ah nominal capacity (min 105.0Ah), ≥336.0Wh energy, 52.5A standard charge/discharge, saving space in module assembly.
Long Cycle Life: Exceptional cycle performance—4000 cycles at 25℃±2℃ (0.5C/0.5C, 2.5V~3.65V) with ≥80% capacity retention, and 2000 cycles at 45℃±2℃ with ≥80% capacity retention. Reduces battery replacement frequency and total lifecycle cost for your products, enhancing market competitiveness.

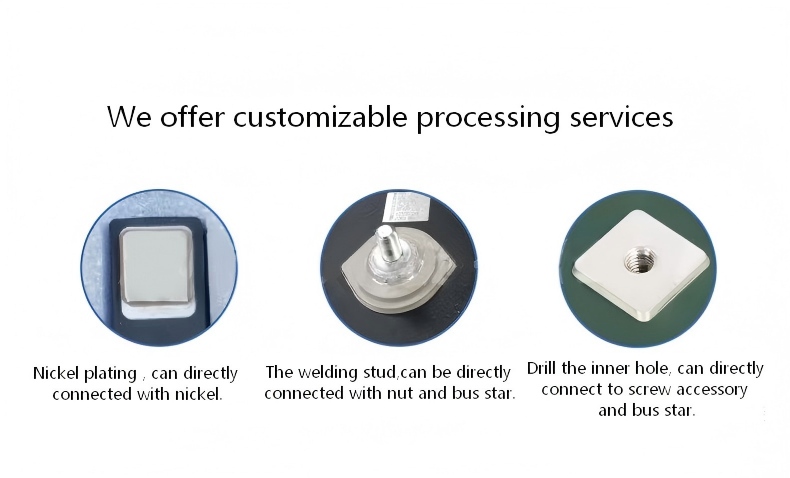

Custom Processing: nickel plating, welding stud, inner hole drilling, tailored for your assembly needs.
Wide Temperature Adaptability: Charge 0℃~65℃, discharge -35℃~65℃, suitable for outdoor and harsh environments.
Superior Safety: LiFePO4 chemistry, passes strict safety tests (no fire/explosion), ideal for high-risk industrial use.

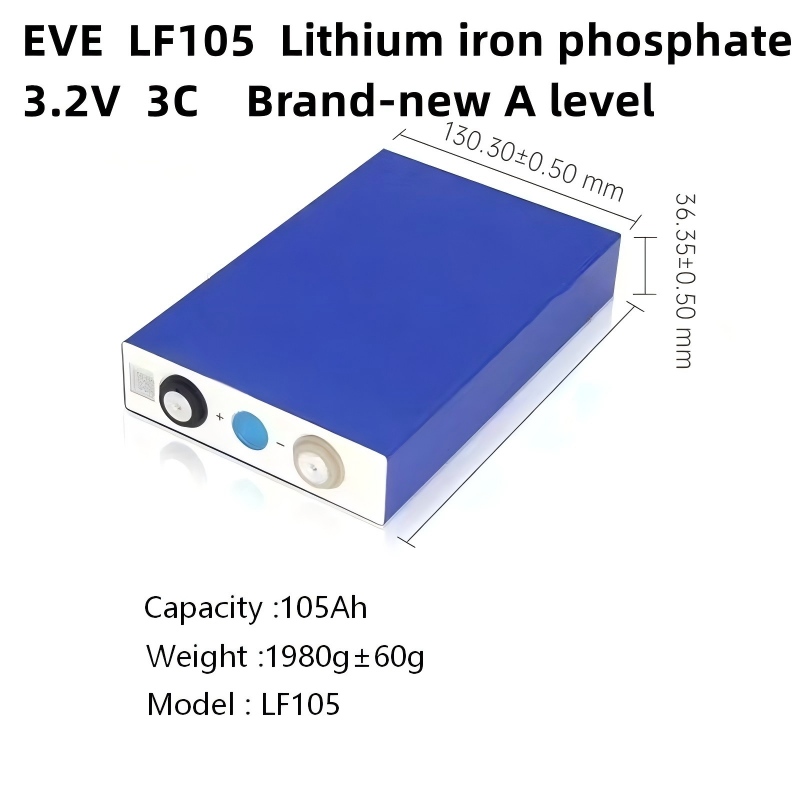

Compact Prismatic Design: 130.30mm±0.50mm × 36.35mm±0.50mm × 200.50mm±0.50mm (under 300kgf±20kgf compression force, 30%~40% SOC), weight 1980g±60g. Prismatic shape allows efficient stacking and space-saving module assembly, adapting to the limited installation space of EVs, buses, and marine equipment.
Wide Applications: Optimized for EVs, energy storage, marine machinery, solar systems, buses and passenger cars.
Recommended Applications (Tailored for Industrial Needs)
The EVE LF105 is optimized for high-demand industrial applications, ideal for:
Electric Vehicles & Passenger Cars: Stable high-power output, compact design, suitable for EVs and electric passenger cars.
Energy Storage Systems: Ideal for residential/commercial ESS, solar/wind storage, reducing maintenance costs.
Engineering Marine Machinery: Withstands harsh marine environments, safe for marine power and storage.
Solar Power Systems: Perfect for off-grid/on-grid solar, wide temperature adaptability for outdoor use.
Buses & Commercial Vehicles: Long-range power, 4000-cycle life, lowering operational costs for bus operators.
Why Source EVE LF105 Cell From Joyvolte Energy ?
Genuine EVE Products: Authorized supply, original cells, with EVE’s official datasheet and certification.
Custom Processing: Same services as EVE C40, saving your secondary processing time and cost.
Strict QC: Pre-shipment inspection for capacity, IR, voltage and appearance, zero defective products.
Competitive Pricing: Bulk discounts and flexible MOQ for small and large orders.
Fast Global Shipping: Professional packaging, timely delivery to EU/US/Asia.
24/7 Support: Prompt consultation, customization and after-sales service within 24 hours.
Ready to get the EVE LF105 3.2V 105Ah cell for your projects? Contact us for quotes, bulk pricing, processing details and stock.we offer one-stop solutions—we respond within 24 hours!
